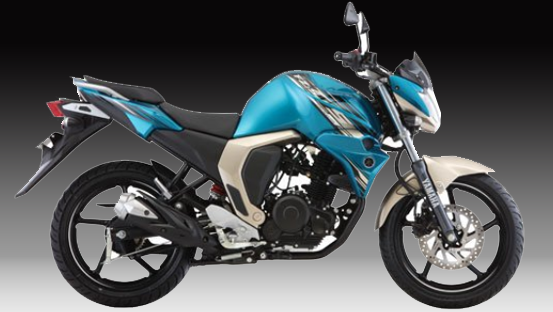

The all-new FZ-FI takes riding to the next level. It brings the most advanced YAMAHA Blue Core concept to offer bikers an unmatched experience of performance and efficiency. At its heart is the all-new YAMAHA Fuel Injection (FI) Blue Core engine. It uses advanced sensors and actuators to calculate and deliver the optimum amount of fuel to the engine thus enhancing both performance and mileage. The reduced weight (132kg) makes the bike even more responsive leading to quick initial pickup and delivers smooth passing acceleration.
|Suspension||FZ FI's 7-times adjustable Monocross suspension is of World Motocross Championship standards. This type of suspension gives the rider an exhilarating and stable riding experience.|
Front100/80-17M/C (52P)NYLOGRIP ZAPPER-FX1
Overall Length x Width x Height
2,073mm x 770mm x 1,030mm
Minimum ground clearance
Fuel tank volume
|Fuel Tank||Fuel Tank Capacity12 Litres|
The all-new 149cc Fuel Injection (FI) Blue Core engine of YAMAHA FZ FI uses advanced sensors and actuators to calculate and deliver the optimum amount of fuel to the engine – enhancing both performance and mileage. It achieves a 14% improvement* in fuel economy. The bore x stroke dimensions are 57.3 mm×57.9 mm, making it a relatively small bore engine, and its intake/exhaust valve layout is designed to best match the hemispherical combustion chamber. The new engine further improves fuel efficiency and the feeling of acceleration while retaining the excellent performance qualities of the current FZ engine.
|Type:||Air cooled, 4-stroke, SOHC, 2-valve|
|Bore & Stroke:||57.3mm x 57.9mm|
|Maximum Power (PS/RPM):||9.7 kW (13.2PS) / 8000 rpm|
|Maximum Torque (NM/RPM):||12.8 N.m (1.3 kg f.m) / 6000 rpm|
|Gearbox:||1st=2.714 2nd=1.789 3rd=1.318 4th=1.045 5th=0.875|
|Final Drive:||520 O-Ring Chain|
The triple macho design of FZ FI lends it an aggressive styling. The muscular shoulders of FZ FI fuel tank look like they are ready to take on any road. FZ FI's large fuel tank with a capacity of 12 liters helps riders ride longer with fewer halts.
Split type aluminium handle grab bars are designed with an easy-to-grip shape and a sporty, sharp-looking design. The handle grab bars are positioned in such a way that it's easier to grasp them for a more relaxed position while driving with a perfect palm grip.
